Converts Kepware JSON project exports into Litmus Edge DeviceHub templates, mapping drivers, translating tag addresses and reporting anything it could not convert.
A containerized web tool that converts a Kepware project, exported as JSON, into a Litmus Edge DeviceHub template. Channels, devices, tags and data types carry over, so a Kepware site moves to Litmus Edge without re-entering its configuration by hand.

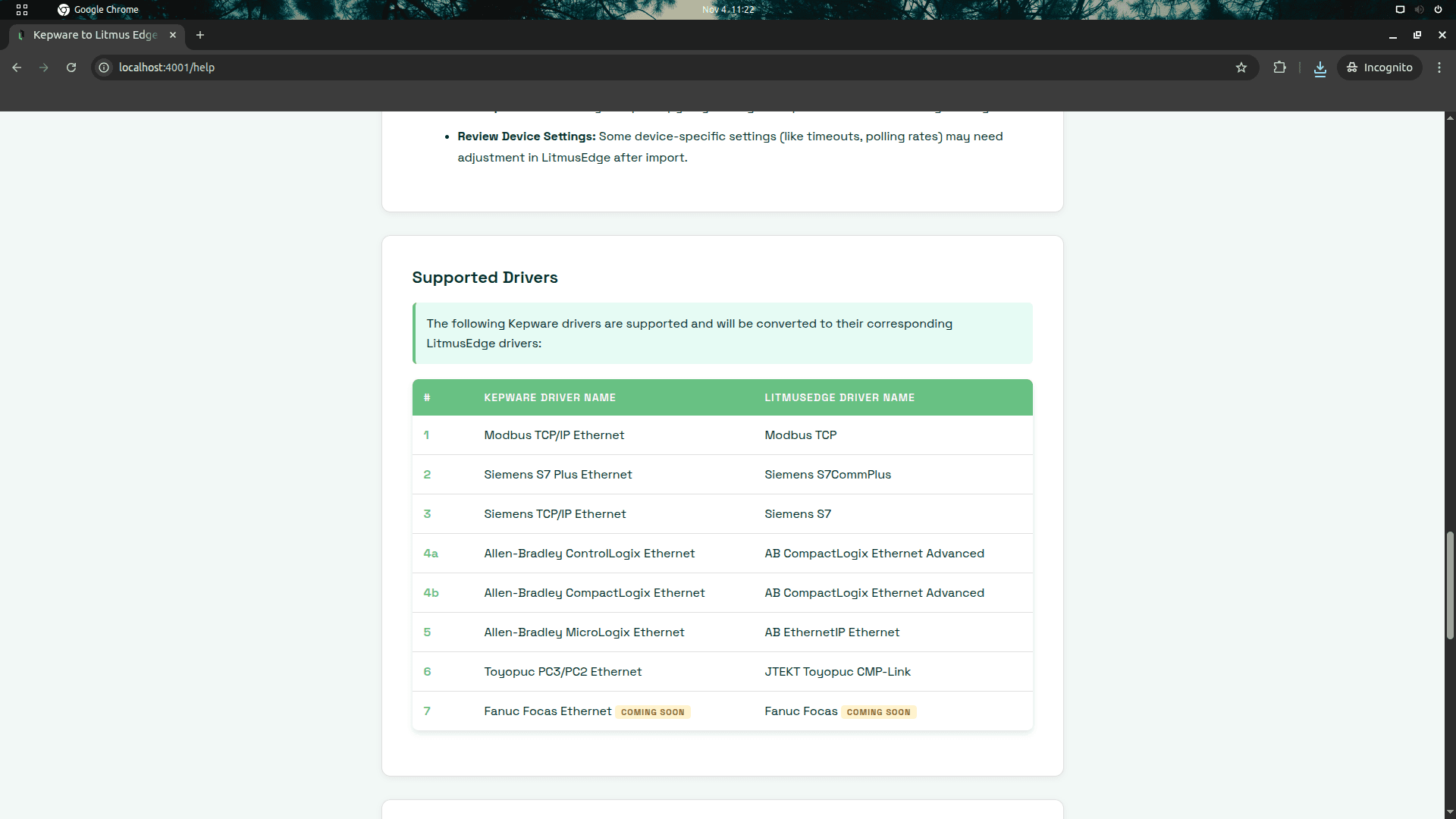

Supported drivers
Modbus TCP/IP Ethernet to Modbus TCP
Siemens TCP/IP Ethernet to Siemens S7, including DB, DBX/DBW and memory area addresses
Siemens S7 Plus Ethernet to Siemens S7CommPlus
Allen-Bradley ControlLogix, CompactLogix and MicroLogix Ethernet to AB CompactLogix Ethernet Advanced and AB EthernetIP
Toyopuc PC3/PC2 Ethernet to JTEKT Toyopuc CMP-Link
Fanuc Focas Ethernet, coming soon
How it works

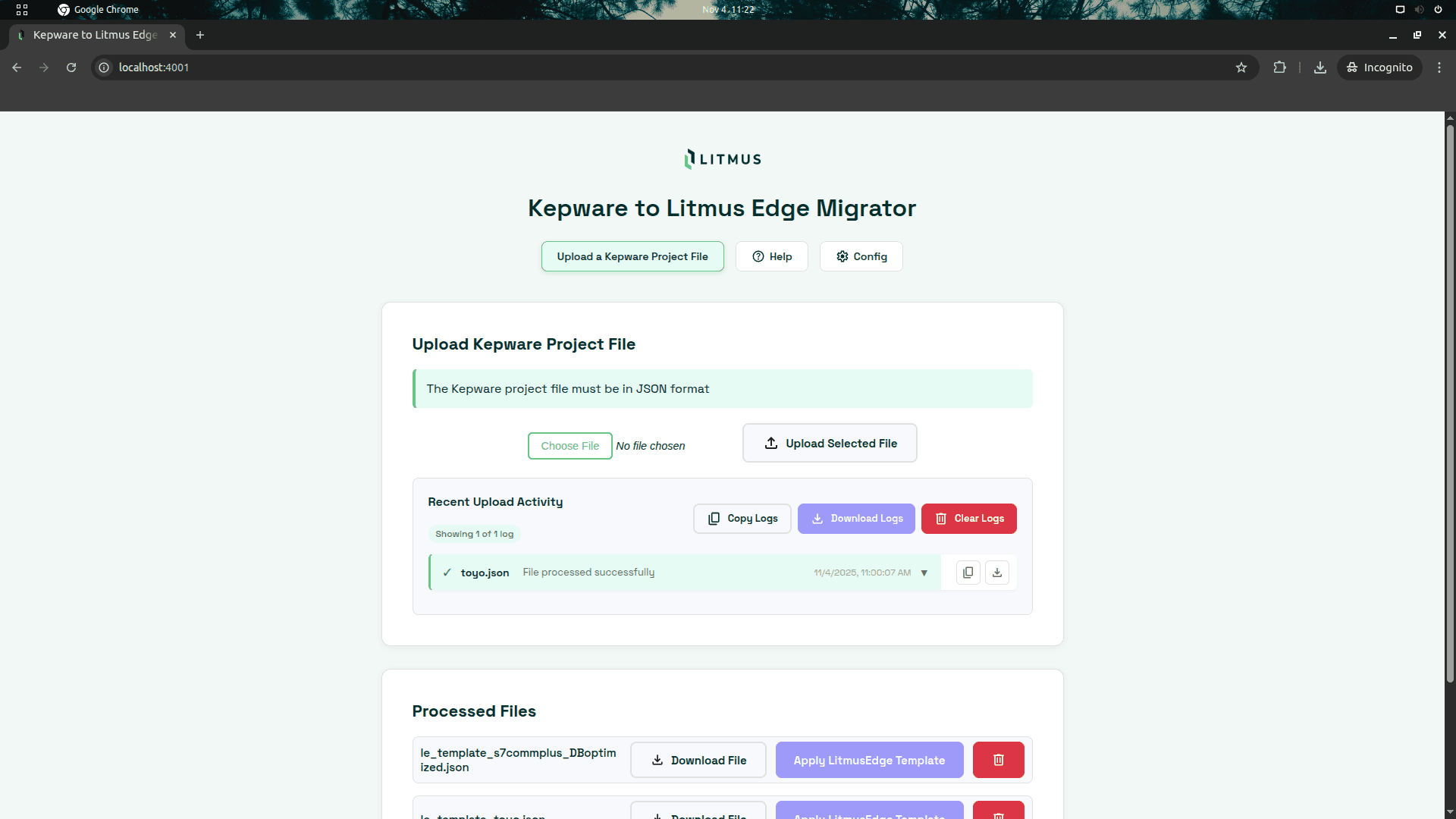

Upload a Kepware JSON export in the browser
Review the migration log: converted devices per channel, and every tag that could not be mapped, with its address and the reason

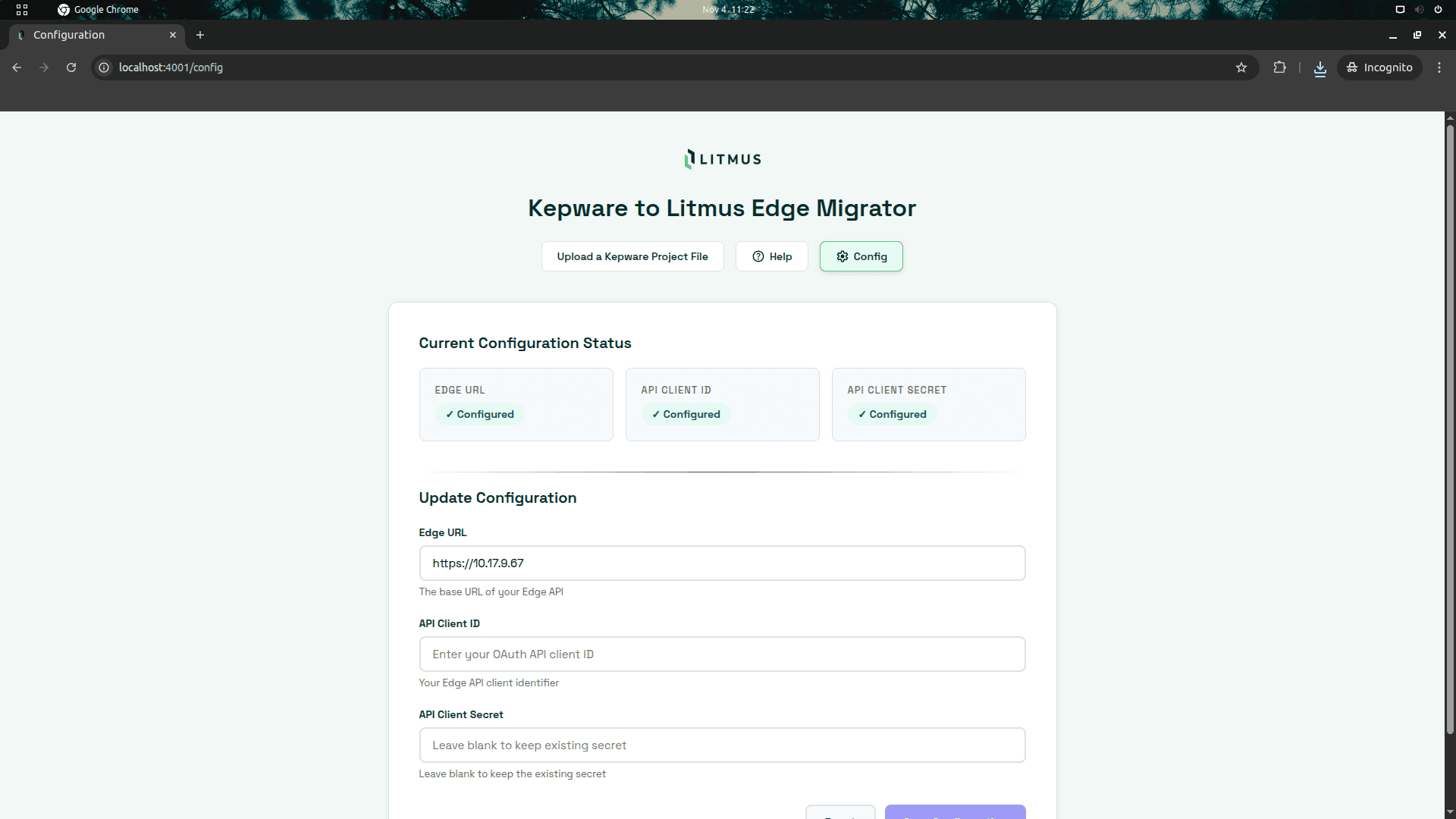

Download the template, or apply it straight to a Litmus Edge device using OAuth2 client credentials, an API token, or a username and password

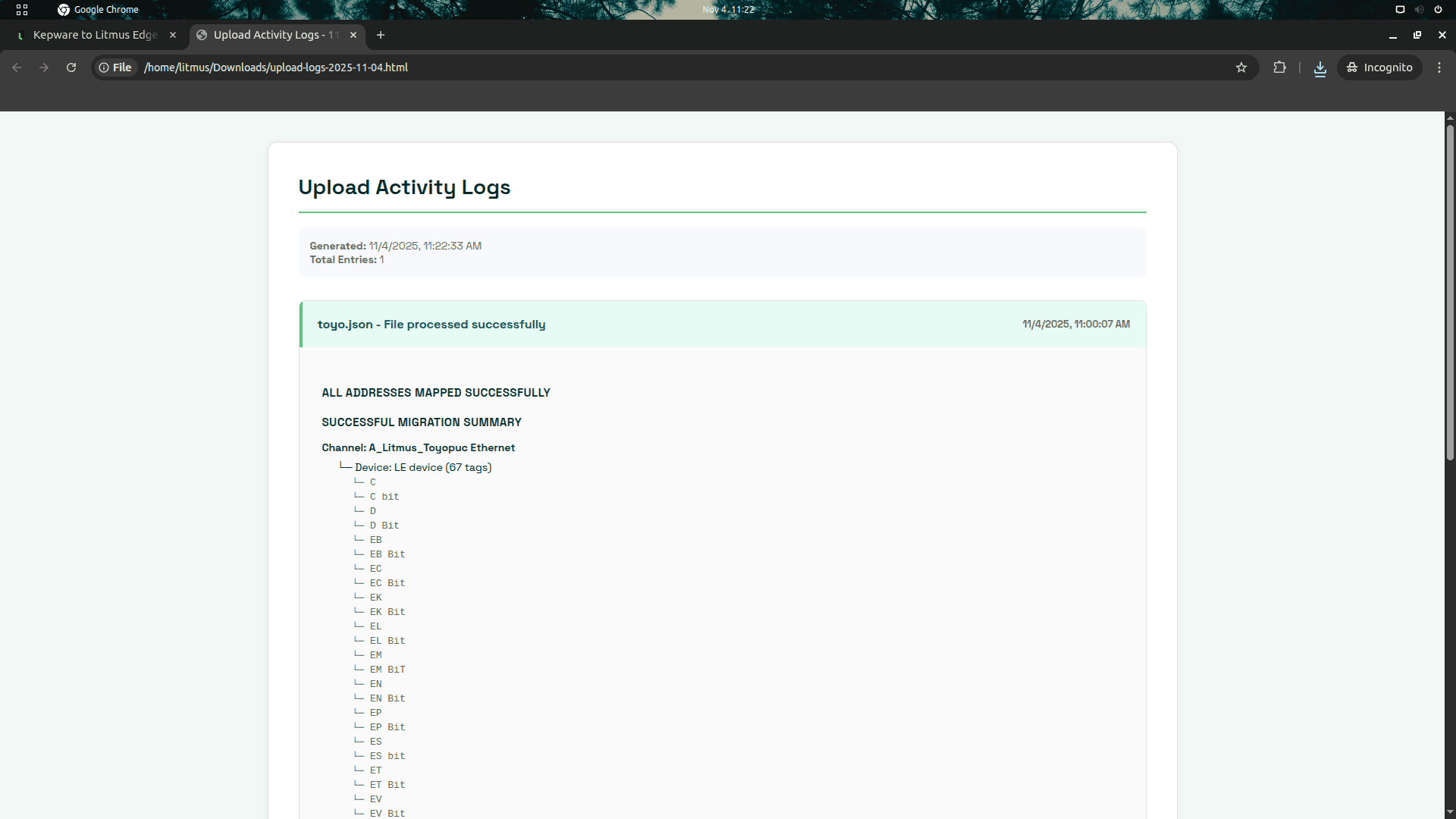

Export the logs as text or HTML to keep a record of each migration
