How it works

What it simulates

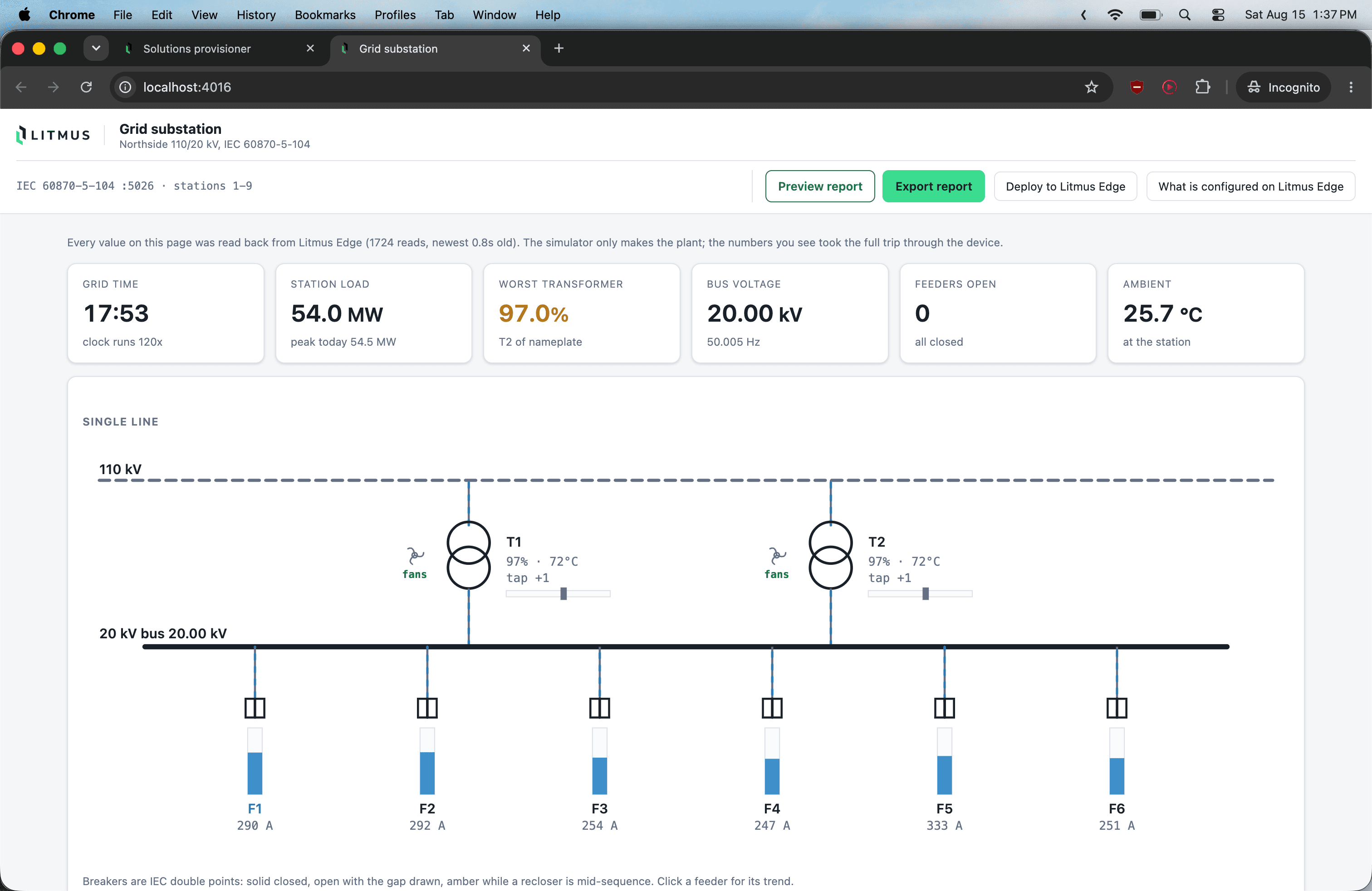

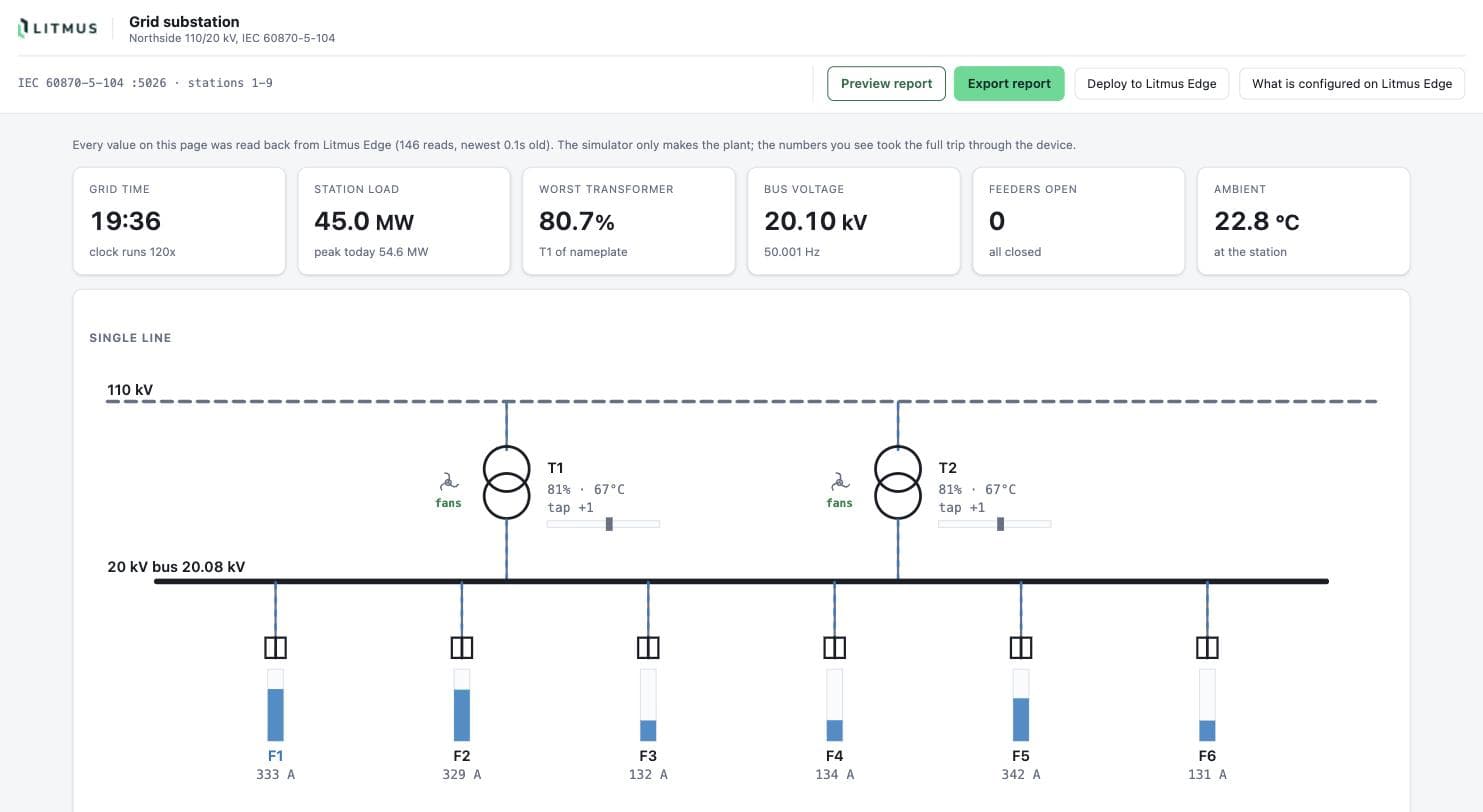

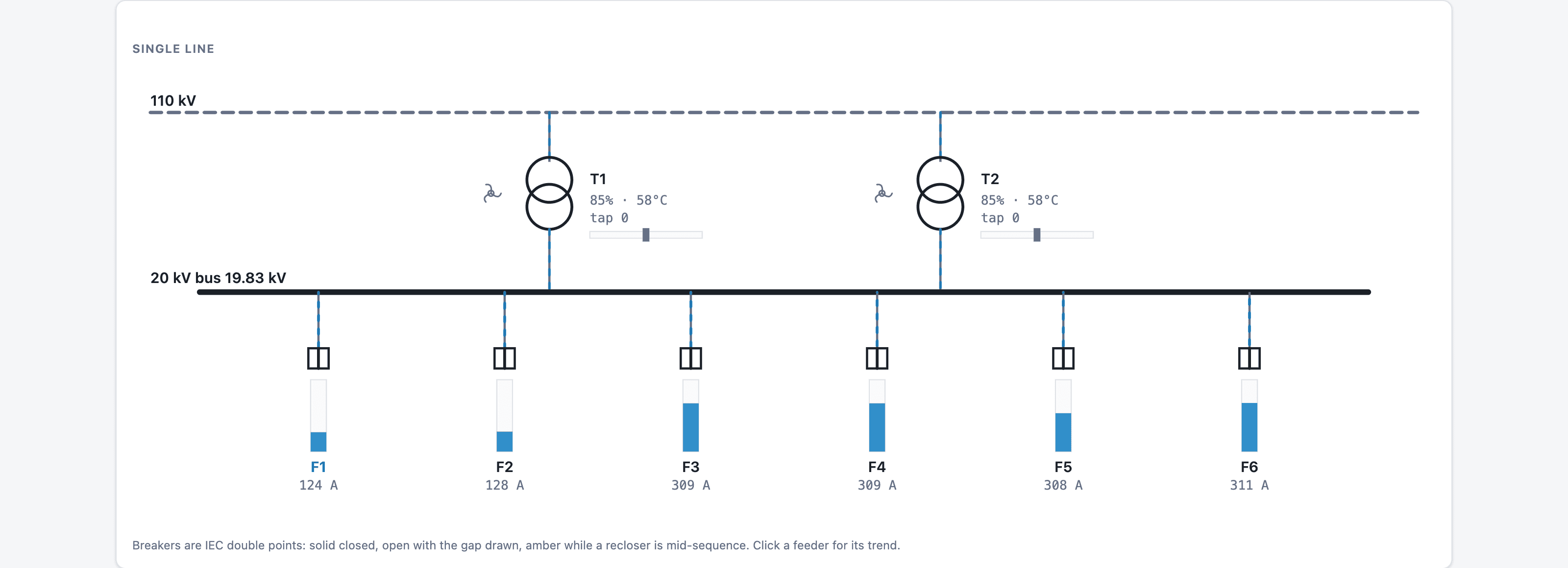

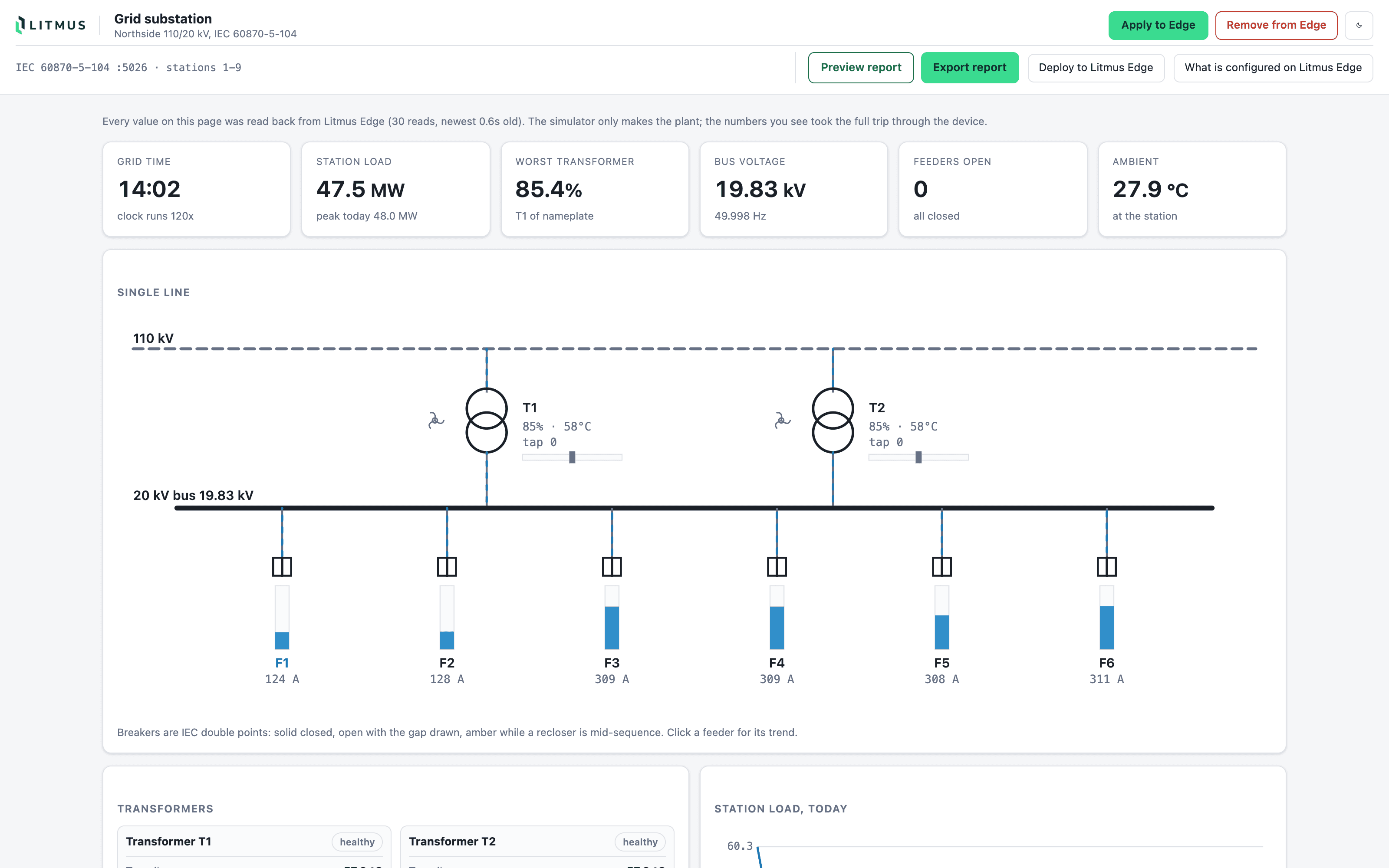

A distribution substation: two power transformers, feeder protection relays and the station's own measurements. Nine devices, 69 points, over IEC 60870-5-104.

Protection events arrive in bursts rather than at a poll rate, so a feeder fault produces a sequence in under a second and the value is in the order of the events rather than in any single one.

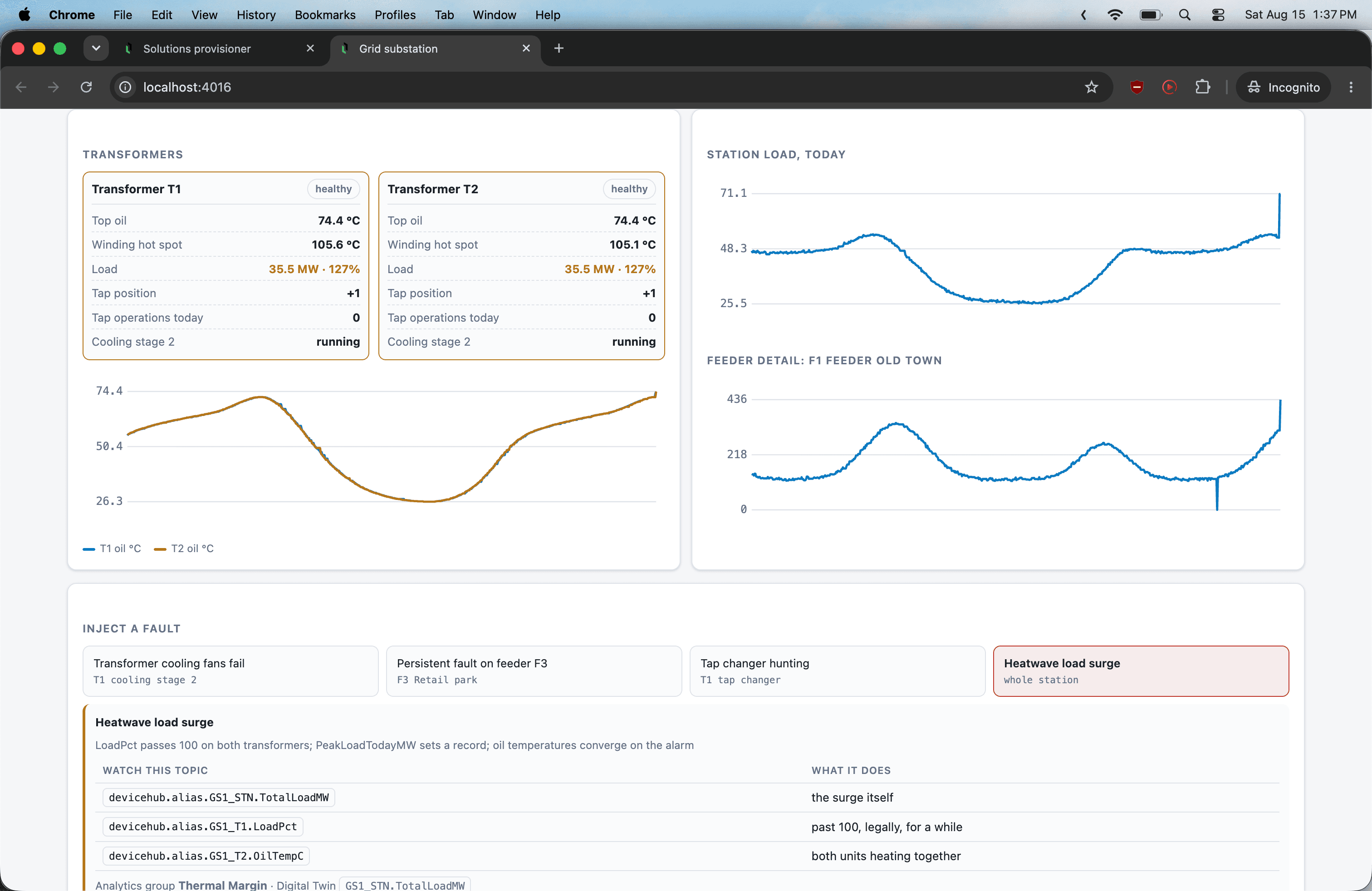

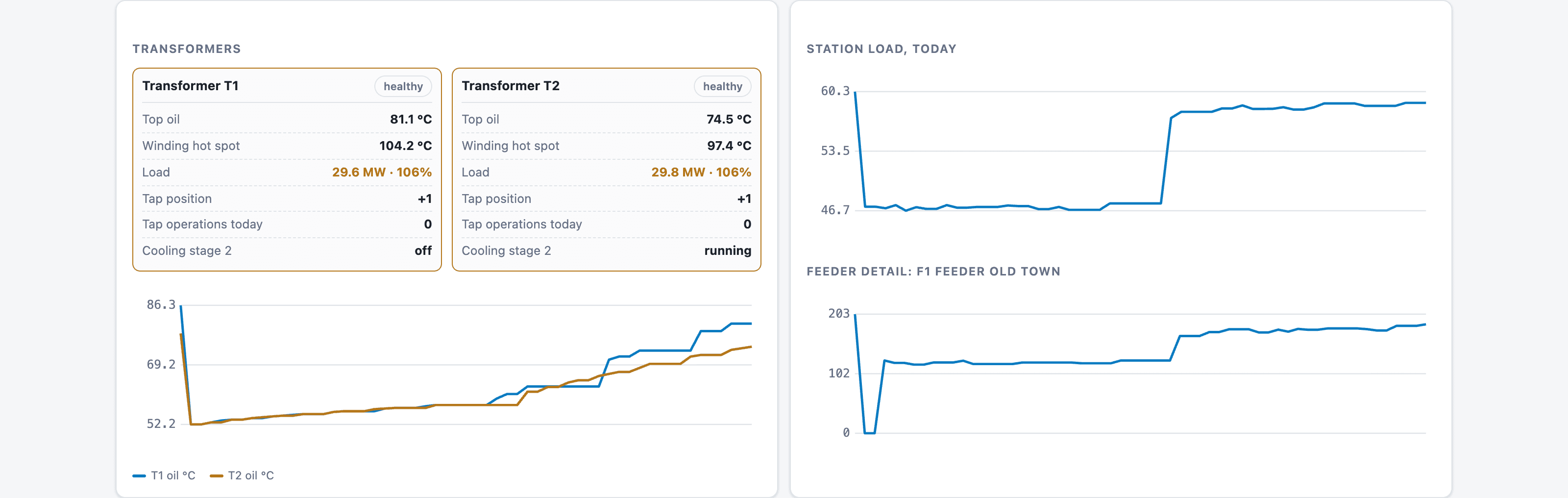

• transformer oil and winding temperatures, loading and tap position
• feeder currents, voltages and protection event sequences
• station load and busbar measurements

What it configures on Litmus Edge

On startup, and it removes exactly what it created when you are finished:

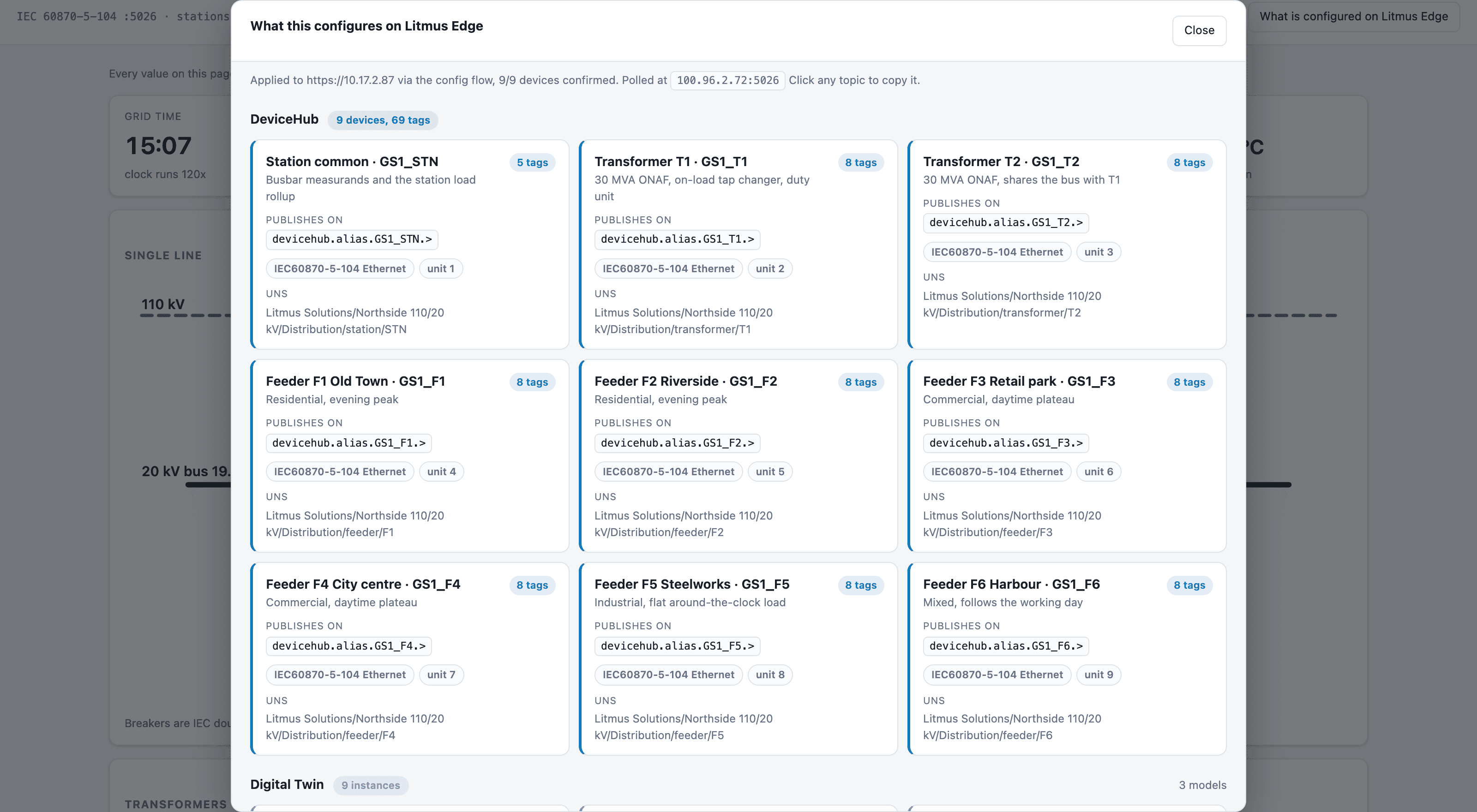

• 9 DeviceHub devices on the IEC 60870-5-104 driver, 69 points
• 3 Digital Twin models covering 9 instances
• 5 multi-input Analytics groups: thermal margin, tap changer wear, feeder events, station load, live values

Scenarios you can inject

• A transformer losing cooling turns the hot spot from a threshold into a curve to project, and the useful question becomes how long there is before a rating is reached
• A hunting tap changer accumulates operations towards maintenance, which is a counter worth more over months than any instantaneous reading

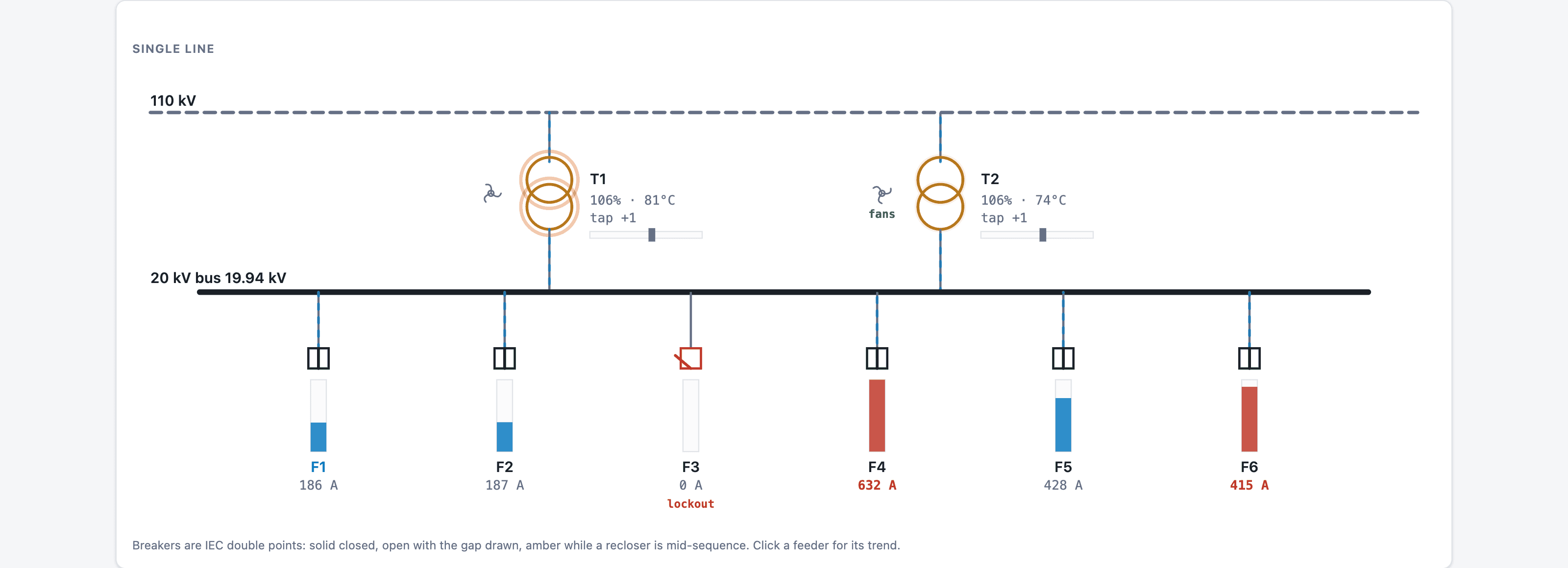

• A feeder fault runs a full recloser sequence end to end, so the demonstration is the sequence rather than the trip
